Resonic K is our solution for small test objects. By combining a conventional air-bearing pendulum and a unique positioning adapter, Resonic K achieves an outstanding combination of simplicity, speed, and accuracy – especially for objects light enough to be lifted by hand.
Combines a frictionless air bearing with a highly repeatable positioning adapter.
Combines an easy process with quality indicators.
Combines a fast and easy measurement procedure with low hardware complexity.
No limit to the horizontal dimensions of the test object.
Almost maintenance-free when combined with the optional calibration cylinder.
Can be easily scaled down to tiny objects weighing a few grams.
Crash test dummy parts (head, torso, upper leg, etc.), tires, engine parts, suspension parts
Wheels, forks, handlebars, helmets, crankshafts, gear components

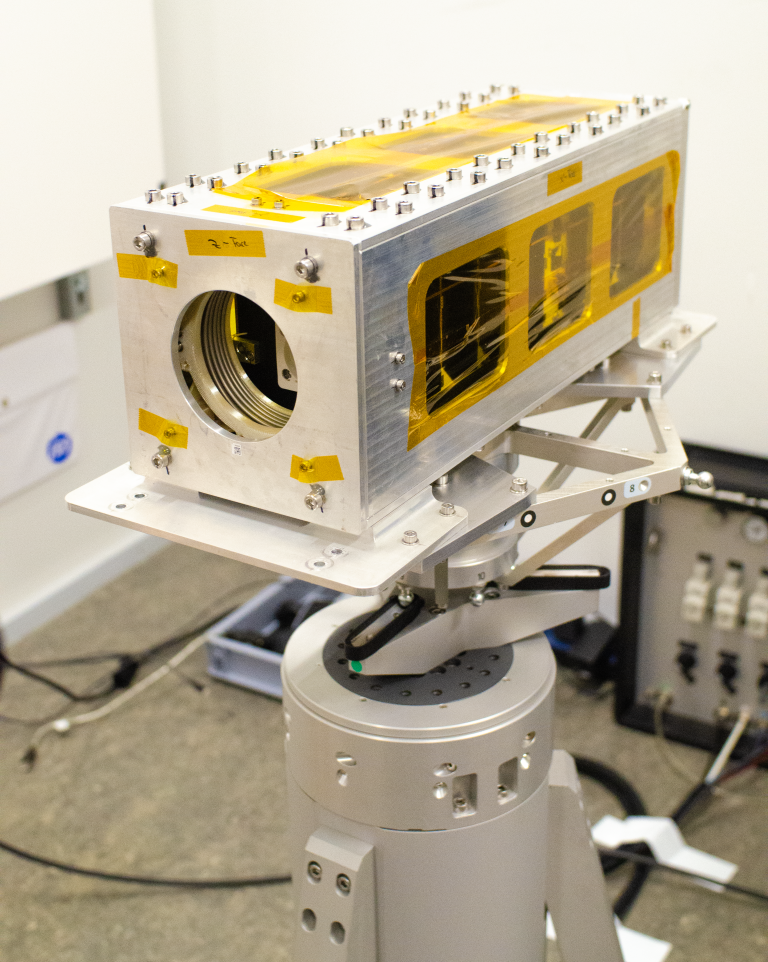

Satellite components, electronics modules, CubeSats, drones
Drills, drivers, rotary hammers, chainsaws
Golf clubs, tennis rackets, helmets, bike wheels, balls, sports pistols and projectiles, skeet rifles
Compressors, articulated optics modules, robot end effectors
Resonic P adapters facilitate the handling of heavier and larger specimens while using the same kind of conventional air-bearing pendulums and the same measuring principle as Resonic K.
